Commutador de motor universal per a eines elèctriques
A collector commutator is a moving part of a rotary electrical switch in electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine. The commutator is one component of a motor; there are also two or more stationary electrical contacts called "brushes" made of a soft conductor like carbon that press against the commutator, making sliding contact with successive segments of the commutator as it rotates.
Aplicació de commutador de col·lectors
Els commutadors de col·lectors s'utilitzen en motors de corrent continu, generadors i motors universals. En un motor, el commutador aplica corrent elèctric als bobinats. Invertint la direcció del corrent en els bobinatges giratoris cada mitja volta, es produeix una força de rotació constant (parell). En un generador, el commutador agafa el corrent generat als bobinats, invertint la direcció del corrent amb cada mitja volta, servint com a rectificador mecànic per convertir el corrent altern dels bobinats en corrent continu unidireccional en el circuit de càrrega externa.
Paràmetres del commutador del col·lector
Nom del producte: | Col·lector universal d'induït del commutador del motor |
Material: | coure |
Tipus: | Ganxo Commutador |
Diàmetre del forat: | 10 mm |
Diàmetre exterior: | 23,2 mm |
Alçada: | 18 mm |
Llesques | 12P |
MOQ | 10000P |

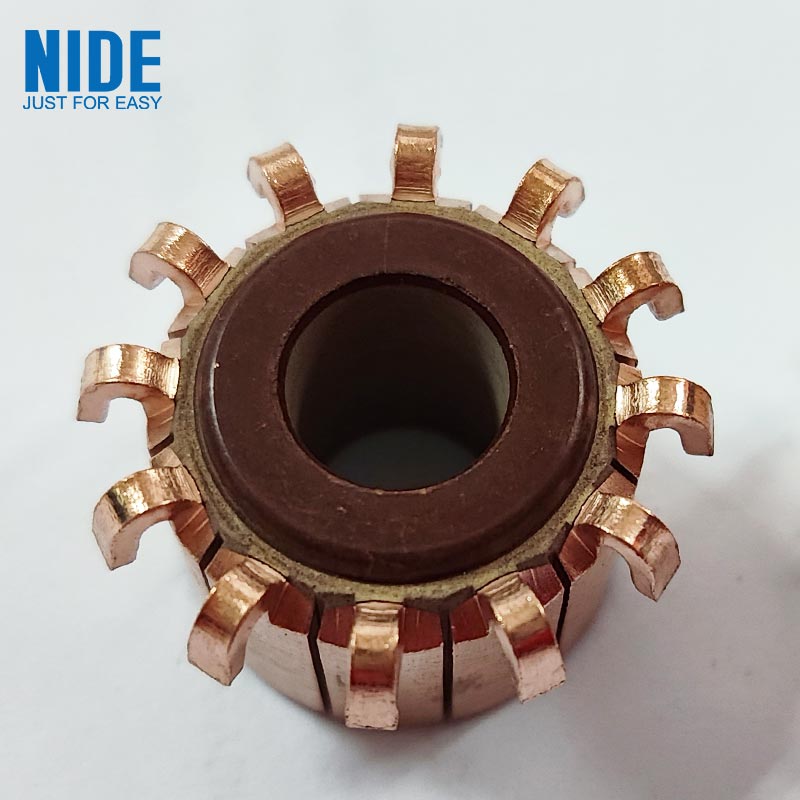

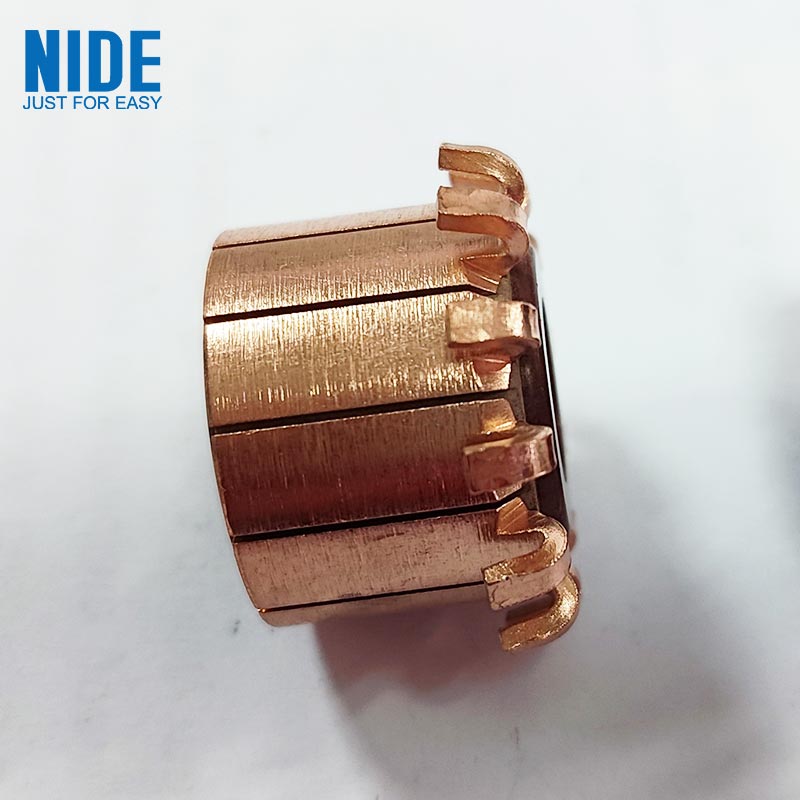

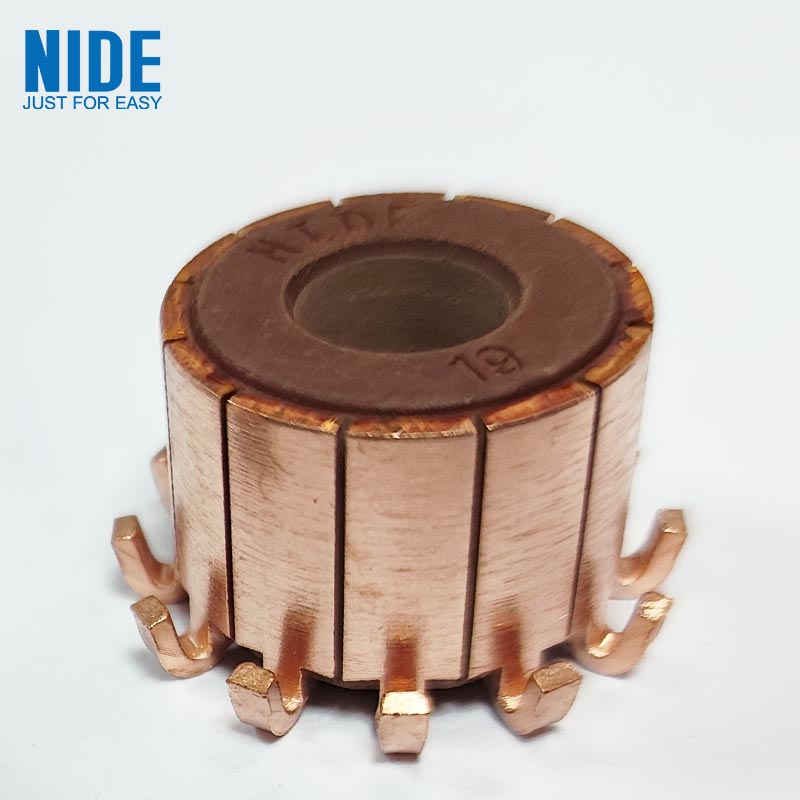

Imatge del commutador de col·leccionistes
